Maglite install

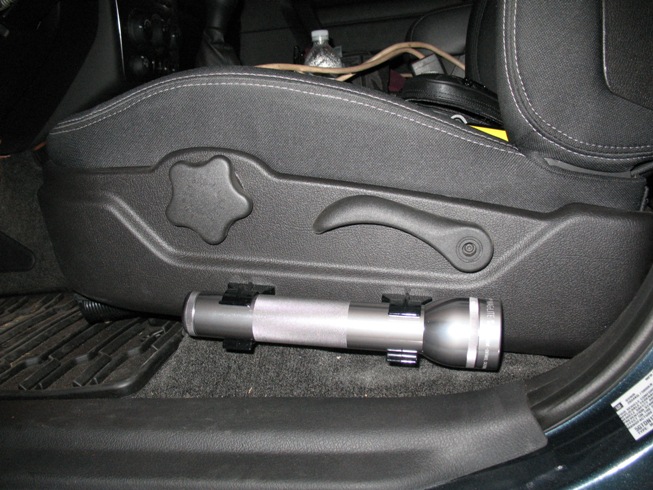

Here's something simple I did that I think will be really useful. I bought a pair of Maglite mounts and installed them on the driver seat, so I'll always have a flashlight handy.
__________________
2007 slate blue 5spd w/ adventure package. Still pretty much stock ... dammit
#2
10-08-2006, 03:35 AM
Hummer Authority
Join Date: May 2006
Location: Arvada, CO
Posts: 1,139
Re: Maglite install
Trouble was ... I couldn't find Maglite brackets anywhere. I checked Walmart, Target, Sears, Garts/Sports Authority, Dicks, Galyans, Gander Mountain and even Home Depot, but nobody carried them. I was about to break down and get them off ebay when I tracked down a set at Bass Pro Shops.
__________________
2007 slate blue 5spd w/ adventure package. Still pretty much stock ... dammit
#3
10-08-2006, 03:38 AM
Hummer Authority
Join Date: May 2006
Location: Arvada, CO
Posts: 1,139
Re: Maglite install

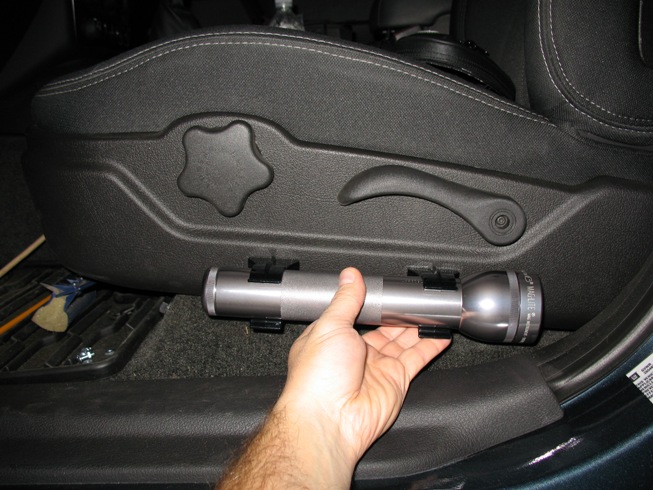

First, I put the brackets on the maglite and tested for size and placement. I chose a 2 D-cell model, but you can see there's room for a 3 or maybe 4 cell if you want. The maglite has a 3 watt LED and is super bright.
__________________
2007 slate blue 5spd w/ adventure package. Still pretty much stock ... dammit
Last edited by Wisha Haddan H3 : 10-08-2006 at 03:57 AM.
#4
10-08-2006, 03:40 AM
Hummer Authority
Join Date: May 2006
Location: Arvada, CO
Posts: 1,139
Re: Maglite install
I carefully held the maglite in place and marked around the brackets with a pencil. Shows up nice and erases when you're done
Then I took the brackets off the maglite, placed them inside the marks, and marked the pilot holes.
__________________
2007 slate blue 5spd w/ adventure package. Still pretty much stock ... dammit
Last edited by Wisha Haddan H3 : 10-08-2006 at 03:44 AM.
#5
10-08-2006, 03:43 AM
Hummer Authority
Join Date: May 2006
Location: Arvada, CO
Posts: 1,139
Re: Maglite install

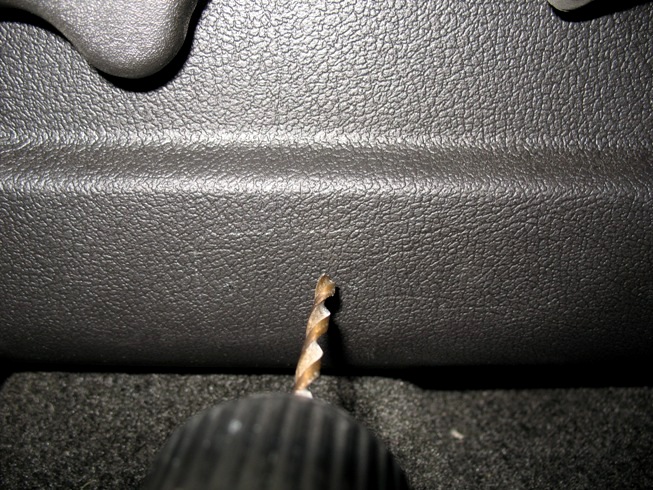

Next step was to drill out the pilot holes. There are some wires under the seat but not attached to the plastic, so I just went slow and easy. The pencil marks show up better in real life, but you get the idea.
__________________
2007 slate blue 5spd w/ adventure package. Still pretty much stock ... dammit
#6
10-08-2006, 03:49 AM
Hummer Authority
Join Date: May 2006
Location: Arvada, CO
Posts: 1,139
Re: Maglite install

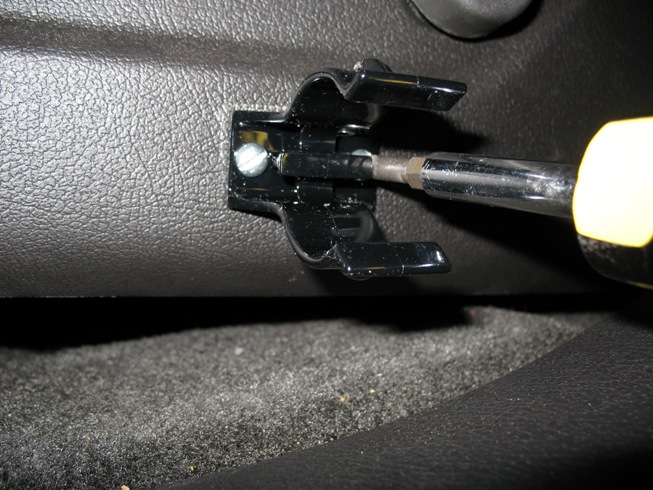

With the pilot holes done, I threaded a small bolt (don't know what size, but I had 4 in my toolbox) through the bracket into the seat trim.
I also fitted a nut to the backside and tightened as best I could with my fingers holding it behind the plastic. They'll probably work loose since I didn't use locktite but whatever
__________________
2007 slate blue 5spd w/ adventure package. Still pretty much stock ... dammit
#7
10-08-2006, 03:50 AM
Hummer Authority
Join Date: May 2006
Location: Arvada, CO
Posts: 1,139
Re: Maglite install
If you try and thread a nut and bolt like I did, move the seat forward or back so the floor bulge isn't in the way.
And there you have it ... two maglite brackets.
__________________
2007 slate blue 5spd w/ adventure package. Still pretty much stock ... dammit
#8
10-08-2006, 03:53 AM
Hummer Authority
Join Date: May 2006
Location: Arvada, CO
Posts: 1,139
Re: Maglite install

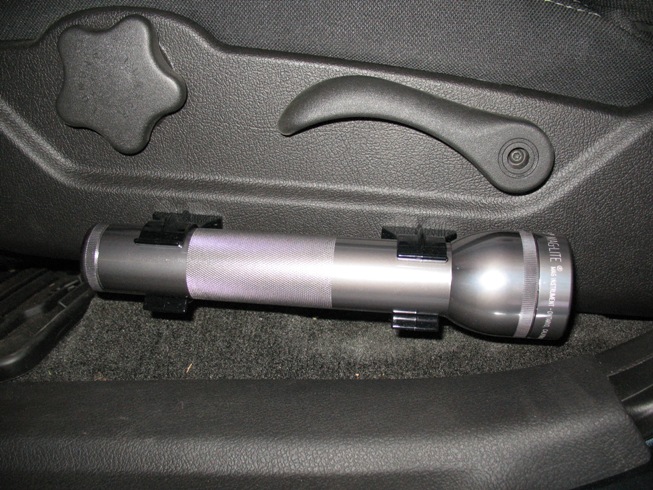

... and here it is with the maglite.
__________________
2007 slate blue 5spd w/ adventure package. Still pretty much stock ... dammit
#9
10-08-2006, 03:54 AM
Hummer Authority
Join Date: May 2006
Location: Arvada, CO
Posts: 1,139
Re: Maglite install

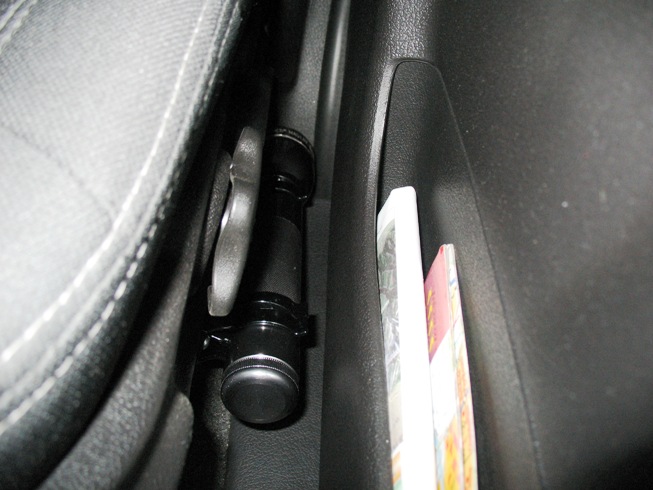

One more pic to answer any questions about clearance. This shot is from the front of the seat with the door closed. There's between .5 and 1 inch of clearance from the door. No problem
btw, for lightsaber mounting, install the clips to the doorsill, so you can get to it without opening the door. (just don't activate it in the car ... those things will really mess up your dash)
__________________
2007 slate blue 5spd w/ adventure package. Still pretty much stock ... dammit
Last edited by Wisha Haddan H3 : 10-08-2006 at 04:06 AM.
#10
10-08-2006, 04:59 AM
Hummer Guru
Join Date: Sep 2005
Posts: 2,980
Re: Maglite install
Nice!!!
#11
10-08-2006, 05:02 AM
Hummer Veteran
Join Date: Jul 2006
Location: Bay Area, CALIF
Posts: 151
Re: Maglite install
nice job... i like it...
__________________
06 H3 Boulder gray,
Adv. Pack, Chrome Pack, Chrome Step Assist, Chrome fuel cover, Chrome Hood with handle, Chrome air intake, Chrome side marker light, Oem Brushguard, Tow Package, Factory Mudflaps Front/Back, XM Radio, OnStar ... more to come
#12
10-08-2006, 05:56 AM
Hummer Authority
Join Date: Nov 2005
Location: Mississippi
Posts: 1,776
Re: Maglite install
Quote:
Originally Posted by The Green Lantern
Nice!!!
X2 Good use of the space!
#13
10-08-2006, 06:34 AM
Hummer Professional
Join Date: Sep 2006
Location: Memphis
Posts: 349
Re: Maglite install
Another little thing you could think about doing with this.. Get another set of the clips and bolt (or epoxy) a magnet to it so you can stick the flashlight under your truck if you ever have to climb under to do work at night...
Idea stolen from http://www.4x4xplor.com/mag-light.html
#15
10-08-2006, 05:45 PM
Hummer Veteran
Join Date: Aug 2005
Location: Washington, DC
Posts: 141
Re: Maglite install
I went with small and large Quick Fists for flashlight and fire extinguisher - they work great:
http://www.expeditionswest.com/equip...uick_fist.html
__________________
Birch White H3 Manual, Adventure Package, Sunroof, Trailering Package, Off-Road Lamps, Splashguards, Black Tubular Assist Steps, Black Crossbows, Mudder Mats, Ski Rack, Warn XD9000 w/ DOI Hawse Winch Bumper, DOI Prototype Skid Plates, M101A1 3/4 ton trailer.
#16
10-08-2006, 05:57 PM
Hummer Guru
Join Date: Nov 2005
Location: rollin with Beebs & F5
Posts: 5,546
Re: Maglite install
great set up
__________________
GREEN no BLING , LINE-X & 35's , Adv. , monsoon & some other crap too
Hangin with my HOABies , Bling is cool but HOABies RULE!!!!
Black Sheep Hummer Squadron / camp
no due's & no dont's
* Rollin with the Banned and the Damned *
"Fred Thompson for President "
#17
10-08-2006, 06:54 PM
Hummer Authority
Join Date: May 2006
Location: Arvada, CO
Posts: 1,139
Re: Maglite install
Quote:
Originally Posted by bjc
I went with small and large Quick Fists for flashlight and fire extinguisher - they work great:
http://www.expeditionswest.com/equip...uick_fist.html
That's the first I heard of Quick Fists, but they look sweet. Good find! I need the large one for my fire extinguisher. I've been trying to decide where to mount it. Any ideas?
__________________
2007 slate blue 5spd w/ adventure package. Still pretty much stock ... dammit
#18
10-08-2006, 08:50 PM
Hummer Authority
Join Date: May 2006
Location: Arvada, CO
Posts: 1,139
Re: Maglite install
Quote:
Originally Posted by jp's-h3
Great idea!
I'm glad I thought of it!
Did you do this too? I know I got the idea from somebody but don't remember who or where.
__________________
2007 slate blue 5spd w/ adventure package. Still pretty much stock ... dammit
#19
10-08-2006, 09:28 PM
Hummer Guru
Join Date: Oct 2005
Location: I CAN BARELY SEE THE ROAD...
Posts: 4,624
Re: Maglite install
Looks nice and clean!
I guess I will have to do something like that, right now my maglite resides in a box with jumper,cables, snatch strap, shakles, etc. in the back
