Default Outside Spare Tire Conversion

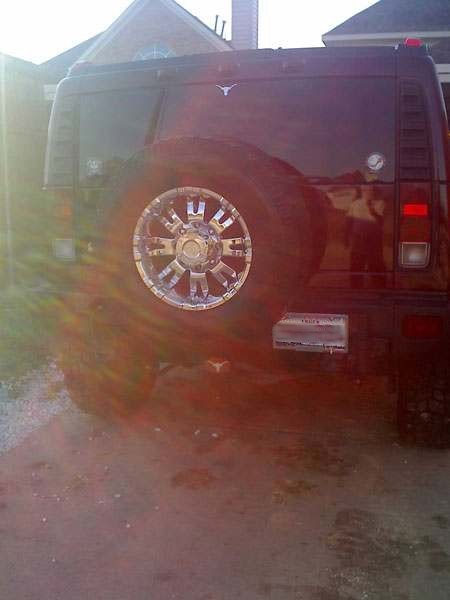

Here is a picture of the back of my Hummer with the new spare tire modifications. It was a little more work that I expected, but it got done in about 3 hours.

The modifications were as follows:
1. Get a lit license plate holder.
2. Remove the old spare with the stock rim and license plate housing. Have the new, matching rim mounted.
3. Remove the stock light housing and light, cut the light wire and wire up the new license plate holder.
4. Drill two holes in the lower spare tire carrier support, right side. Mount the license plate. As you can see, because of the TX state law requiring that the word TEXAS appear without imparement, I was forced to mount the plate holder upside down.
5. Remove the light/plate holder-center piece on the spare tire holder. This was interesting. The welds on the piece were very tight on my truck, and I ended up breaking all 6 of my sawzall blades. I got pissed off, cut through the top weld with a cutting wheel on my Dremel tool, and beat the thing with a sledge and a chisel until the left weld broke, then worked the piece back and forth until the right weld broke.
6. Grind off the remaining welds, prime, and paint.
7. Mount the spare with the new rim.
8. Get out a folding chair, sit back, drink a beer and admire your work. Wear parka if you live north of the Texas border.

I apologize for the picture quality
Attached Images

__________________
2006 Twilight Maroon H2, Procomp 6001 rims, 35" X 12.5 X 17 Xterrain tires, Ram over-the-hood brush guard, Jet Stage I, Warn 9.5 winch and winch bumper, Hedman Headers, K&N Air charger, Lightforce driving lights, a little CHROME for good measure

2006 Victory Red H3 (The Titanic), R.I.P. - It didn't float

1968 Mustang GT convertible

2005 Harley Davidson Hertitage Softail, Stage I, Vance and Hines Big Shot Longs - Sold

2004 Jaguar S-Type (the wifemobile)

Last edited by Captain of the Titanic : 02-07-2007 at 09:06 PM.
Reply With Quote
  #2
Old 02-07-2007, 05:45 PM
ROX's Avatar
ROX ROX is offline
Hummer Guru

Join Date: Jan 2005
Location: Oregon
Posts: 4,321
ROX is an unknown quantity at this point
Default Re: Outside Spare Tire Conversion

Sounds like fun and looks nice, from what I can see.
__________________
If it has tires or testicles, you're going to have trouble with it
Reply With Quote
  #3
Old 02-07-2007, 06:40 PM
WHOSNEXT's Avatar
WHOSNEXT WHOSNEXT is offline
Hummer Professional

Join Date: Nov 2005
Location: N.H. SEACOAST
Posts: 289
WHOSNEXT is an unknown quantity at this point
Default Re: Outside Spare Tire Conversion

what lic bracket did u use?
Reply With Quote
  #4
Old 02-07-2007, 08:10 PM
Captain of the Titanic's Avatar
Captain of the Titanic Captain of the Titanic is offline
Hummer Professional

Join Date: Aug 2006
Location: Dallas, TX
Posts: 398
Captain of the Titanic is an unknown quantity at this point
Default Re: Outside Spare Tire Conversion

I just searched the internet. I tried to find where I got it, but I don't remember. It was only $29, though.
__________________
2006 Twilight Maroon H2, Procomp 6001 rims, 35" X 12.5 X 17 Xterrain tires, Ram over-the-hood brush guard, Jet Stage I, Warn 9.5 winch and winch bumper, Hedman Headers, K&N Air charger, Lightforce driving lights, a little CHROME for good measure

2006 Victory Red H3 (The Titanic), R.I.P. - It didn't float

1968 Mustang GT convertible

2005 Harley Davidson Hertitage Softail, Stage I, Vance and Hines Big Shot Longs - Sold

2004 Jaguar S-Type (the wifemobile)
Reply With Quote
  #5
Old 02-07-2007, 08:22 PM
lennyrebel lennyrebel is offline
Hummer Professional

Join Date: Sep 2006
Posts: 497
lennyrebel is an unknown quantity at this point
Cool Re: Outside Spare Tire Conversion

I sure like your picture in your avatar. God, thats a better bow wave than I throw with my boat--course your probably going faster with a bigger wetted area. The Rebel
__________________
H2 REBEL lennyrebel
Reply With Quote
  #6
Old 02-07-2007, 09:02 PM
Captain of the Titanic's Avatar
Captain of the Titanic Captain of the Titanic is offline
Hummer Professional

Join Date: Aug 2006
Location: Dallas, TX
Posts: 398
Captain of the Titanic is an unknown quantity at this point
Default Re: Outside Spare Tire Conversion

Thanks. I practiced on a H3 by driving into a lake. Once totalled, I got a H2 and so far have kept it afloat! One of my co-workers gave me the "Not a floatation device" graphics, which is now a sticker on my dash!
__________________
2006 Twilight Maroon H2, Procomp 6001 rims, 35" X 12.5 X 17 Xterrain tires, Ram over-the-hood brush guard, Jet Stage I, Warn 9.5 winch and winch bumper, Hedman Headers, K&N Air charger, Lightforce driving lights, a little CHROME for good measure

2006 Victory Red H3 (The Titanic), R.I.P. - It didn't float

1968 Mustang GT convertible

2005 Harley Davidson Hertitage Softail, Stage I, Vance and Hines Big Shot Longs - Sold

2004 Jaguar S-Type (the wifemobile)
Reply With Quote
  #7
Old 02-20-2007, 11:55 AM
brave313 brave313 is offline
Hummer Veteran

Join Date: Jan 2007
Posts: 31
brave313 is on a distinguished road
Default Re: Outside Spare Tire Conversion

Where did you purchase the rims, looks good.. Can you use the same tires that come standard with the Hummer2
Reply With Quote
  #8
Old 02-20-2007, 05:07 PM
Captain of the Titanic's Avatar
Captain of the Titanic Captain of the Titanic is offline
Hummer Professional

Join Date: Aug 2006
Location: Dallas, TX
Posts: 398
Captain of the Titanic is an unknown quantity at this point
Default Re: Outside Spare Tire Conversion

I stayed with stock tire size. Those are Procomp 6001s. I am very happy with them!
__________________
2006 Twilight Maroon H2, Procomp 6001 rims, 35" X 12.5 X 17 Xterrain tires, Ram over-the-hood brush guard, Jet Stage I, Warn 9.5 winch and winch bumper, Hedman Headers, K&N Air charger, Lightforce driving lights, a little CHROME for good measure

2006 Victory Red H3 (The Titanic), R.I.P. - It didn't float

1968 Mustang GT convertible

2005 Harley Davidson Hertitage Softail, Stage I, Vance and Hines Big Shot Longs - Sold

2004 Jaguar S-Type (the wifemobile)
Reply With Quote
