Air ride sensor mod made easy!
Bullies in the Garage Present:
Air ride sensor modification made easy!

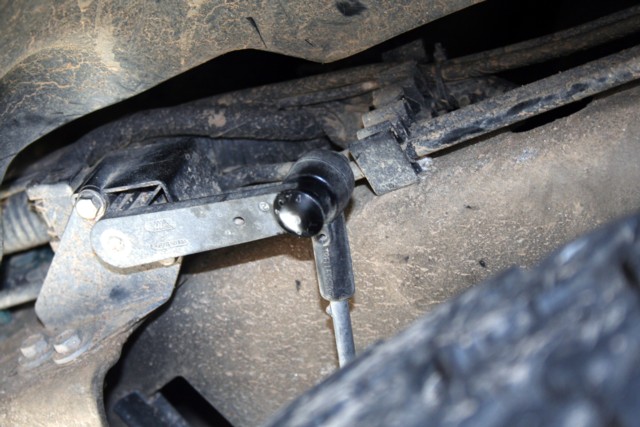

So your thinking of buying 37's for your H2 but you are worried about breaking your control arm air ride sensor. Well, the Bullies are here to show you how to make it easy and affordable.
Cost of this project: 75 cents

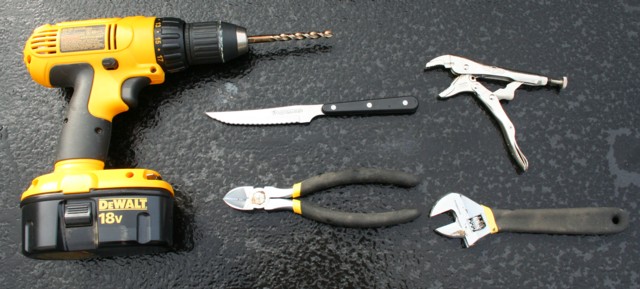

Tools needed:
Drill,
5/16 drill bit,
Wire Cutters,
Cresent Wrench,
Monkey Wrench,
(and my personal fav...)
Henckels Brand Steak Knife
|
02-12-2007, 07:50 PM
|
|
Hummer Authority
|
|
Join Date: Mar 2006
Location: Sacramento, CA
Posts: 1,075
|
|
Re: Air ride sensor mod made easy!

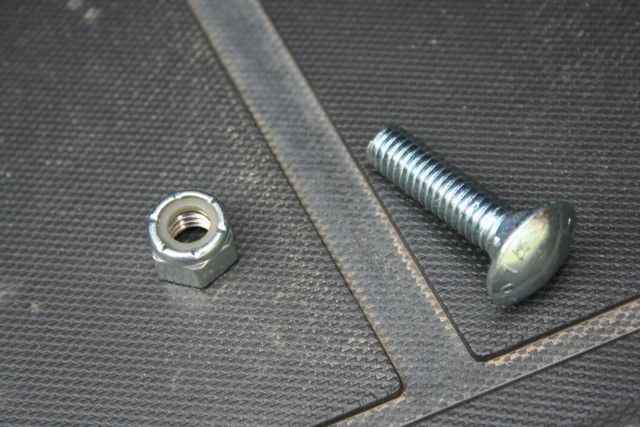

The first thing you need to do is purchase two Carrage Bolts 5/16 x 1 1/4
as well as two locking nuts.
|
02-12-2007, 07:53 PM
|
|
Hummer Authority
|
|
Join Date: Mar 2006
Location: Sacramento, CA
Posts: 1,075
|
|
Re: Air ride sensor mod made easy!

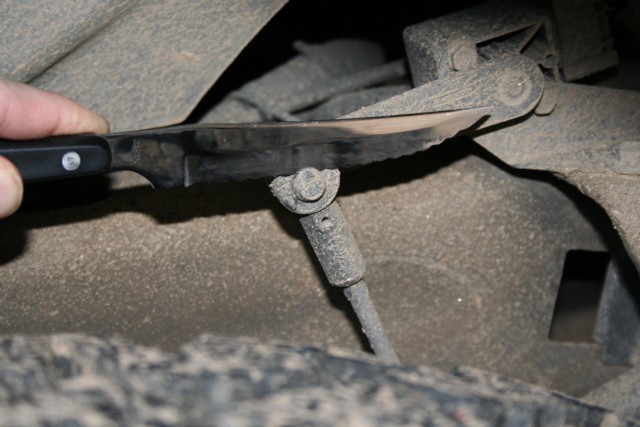

The next thing to do is to cut off the end of that pin on the control arm using a steak knife or anything else you can use to make a clean cut. (The steak knife was fast and easy. Wire cutters were a bitch)
|
02-12-2007, 07:55 PM
|
|
Hummer Authority
|
|
Join Date: Mar 2006
Location: Sacramento, CA
Posts: 1,075
|
|
Re: Air ride sensor mod made easy!

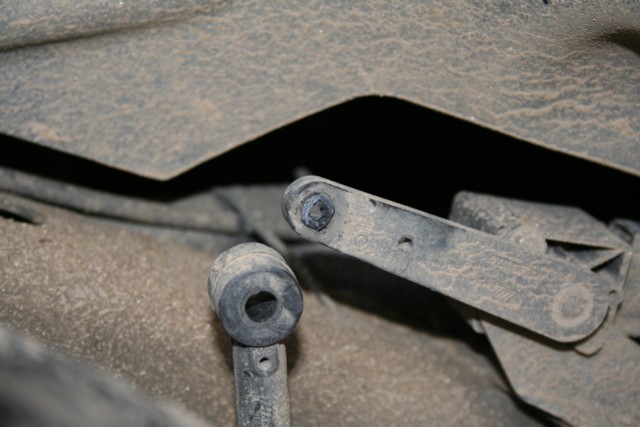

Now it should look like this...
|
02-12-2007, 07:57 PM
|
|
Hummer Authority
|
|
Join Date: Mar 2006
Location: Sacramento, CA
Posts: 1,075
|
|
Re: Air ride sensor mod made easy!

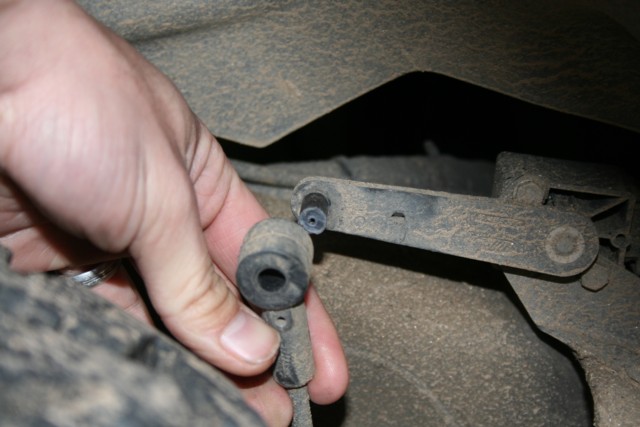

Now pull the arm apart like this...
|
02-12-2007, 08:02 PM
|
|
Hummer Authority
|
|
Join Date: Mar 2006
Location: Sacramento, CA
Posts: 1,075
|
|
Re: Air ride sensor mod made easy!

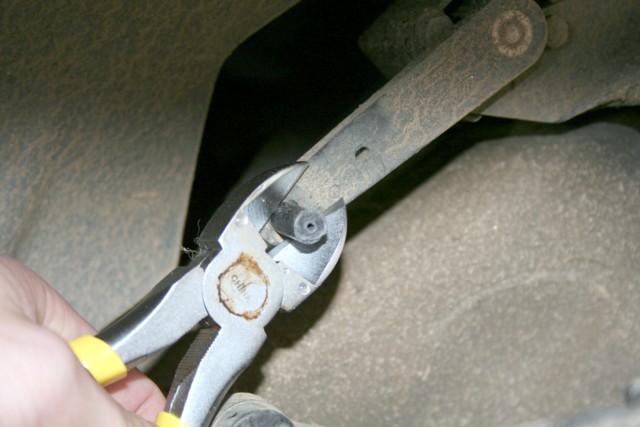

Next, cut off the remaining piece of the pin using wire cutters.
|
02-12-2007, 08:03 PM
|
|
Hummer Authority
|
|
Join Date: Mar 2006
Location: Sacramento, CA
Posts: 1,075
|
|
Re: Air ride sensor mod made easy!

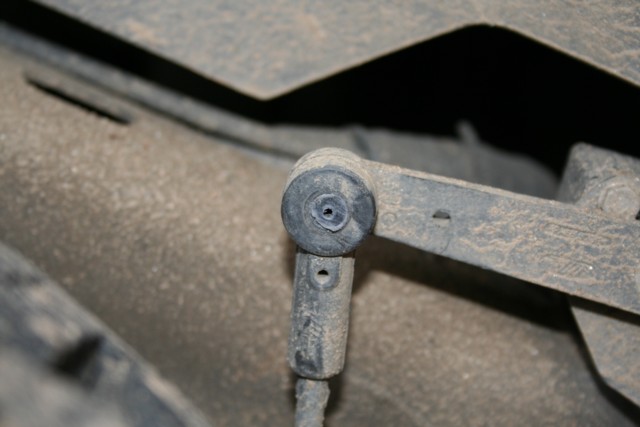

Now it should look like this. Your bolt will be too big for this hole, so get your drill ready...
|
02-12-2007, 08:05 PM
|
|
Hummer Authority
|
|
Join Date: Mar 2006
Location: Sacramento, CA
Posts: 1,075
|
|
Re: Air ride sensor mod made easy!

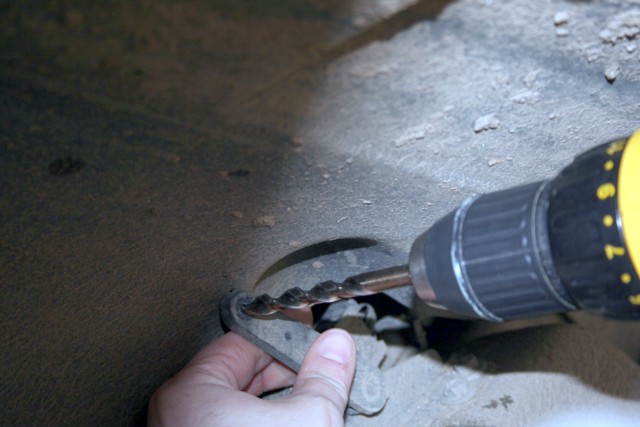

Carefully drill the hole to make way for the bolt. This make take a couple of tries as the rubber likes to stick to the bit.
|
02-12-2007, 08:10 PM
|
|
Hummer Authority
|
|
Join Date: Mar 2006
Location: Sacramento, CA
Posts: 1,075
|
|
Re: Air ride sensor mod made easy!
Now that your hole is drilled, (haha) next put the Carriage bolt through the hole you drilled as seen below. We used this bolt because of the smooth broad surface to further reduce the chance of the tire catching it during rigorous off-road conditions.
|
02-12-2007, 08:15 PM
|
|
Hummer Authority
|
|
Join Date: Mar 2006
Location: Sacramento, CA
Posts: 1,075
|
|
Re: Air ride sensor mod made easy!

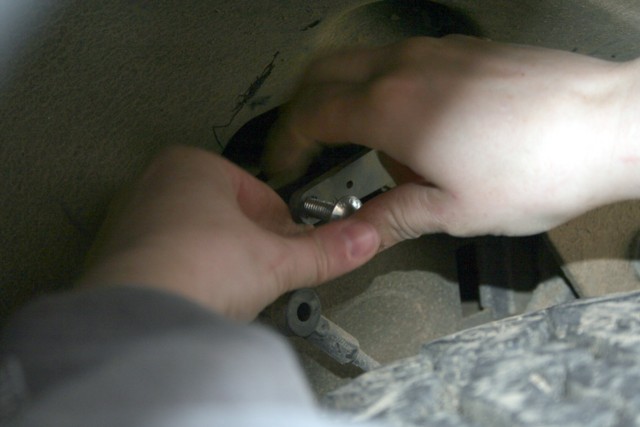

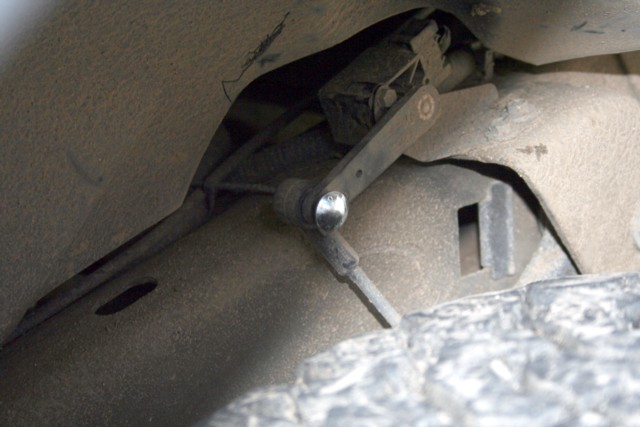

Next run the bolt through the vertical arm as well. It should look like the picture below.
|
02-12-2007, 08:20 PM
|
|
Hummer Authority
|
|
Join Date: Mar 2006
Location: Sacramento, CA
Posts: 1,075
|
|
Re: Air ride sensor mod made easy!

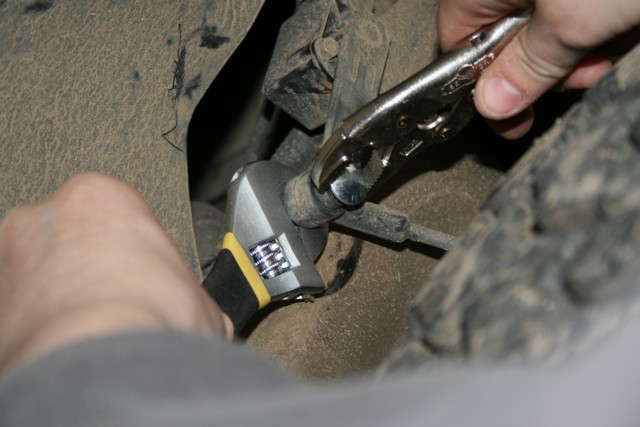

Using the a crescent wrench attach and tighten the locking nut to the bolt. We used a small monkey wrench to hold the bolt in place during tightening.
|
02-12-2007, 08:23 PM
|
|
Hummer Authority
|
|
Join Date: Mar 2006
Location: Sacramento, CA
Posts: 1,075
|
|
Re: Air ride sensor mod made easy!

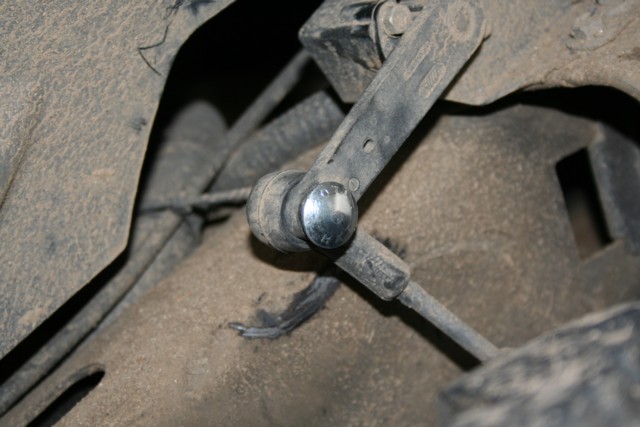

Almost done... It should look like this...
Make sure to repeat steps for the other side.
Last edited by Bully13 : 02-12-2007 at 08:37 PM.
|
02-12-2007, 08:24 PM
|
|
Hummer Authority
|
|
Join Date: Mar 2006
Location: Sacramento, CA
Posts: 1,075
|
|
Re: Air ride sensor mod made easy!

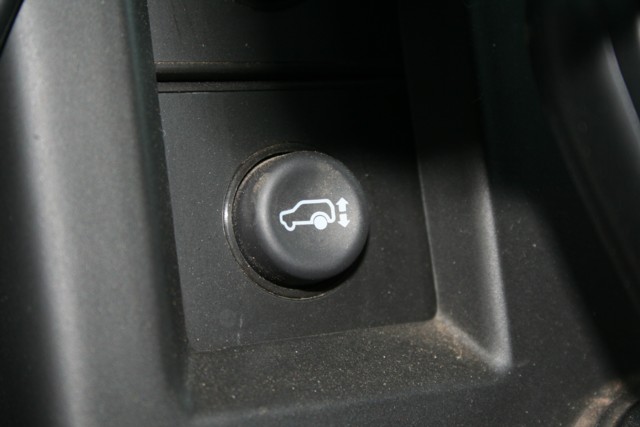

Test your air ride to ensure proper operation.
|
02-12-2007, 08:26 PM
|
|
Hummer Authority
|
|
Join Date: Mar 2006
Location: Sacramento, CA
Posts: 1,075
|
|
Re: Air ride sensor mod made easy!
If you mess up or break the arm, your pretty much screwed so good luck!
Work was performed by H2 Bully and assisted by myself. Pictures were taken by me.
|
02-12-2007, 08:37 PM
|
|
Hummer Authority
|
|
Join Date: Mar 2006
Location: Sacramento, CA
Posts: 1,075
|
|
Re: Air ride sensor mod made easy!
Don't forget to De-Bling!
|
