10-24-2005, 03:18 AM
|
|
Hummer Guru
|
|
Join Date: Jul 2005
Posts: 4,123
|
|
Got my CB installed this weekend. Went with the Cobra 75WXST with a 2' Firestik antenna. Here's a shot of all the stuff.
__________________
|
12-16-2005, 11:37 AM
|
 |
Hummer Professional
|
|
Join Date: Aug 2005
Location: Ohio
Posts: 337
|
|
keep us posted on the changes, and you did so well at posting pics of the install the 1st time it would be a shame if you didn't this time.  thanks for the reply.
__________________
What good is a Hummer if you don't use it.
|
10-24-2005, 03:18 AM
|
|
Hummer Guru
|
|
Join Date: Jul 2005
Posts: 4,123
|
|
Got my CB installed this weekend. Went with the Cobra 75WXST with a 2' Firestik antenna. Here's a shot of all the stuff.
__________________
|
12-29-2005, 04:22 PM
|
 |
Hummer Professional
|
|
Join Date: Nov 2005
Location: Santa Barbara
Posts: 321
|
|
<BLOCKQUOTE class="ip-ubbcode-quote"><div class="ip-ubbcode-quote-title">quote:</div><div class="ip-ubbcode-quote-content">Originally posted by fourfourto:
Just to let you know the cig/accy lighter/ socket shuts off after 20 min(of shutting off truck) if accy is left on. </div></BLOCKQUOTE>
A dead battery in the morning contradicts this statement. The Power Supply plugs in the dash are hot all the time and do not turn off in 20 minutes. Found out the hard way.

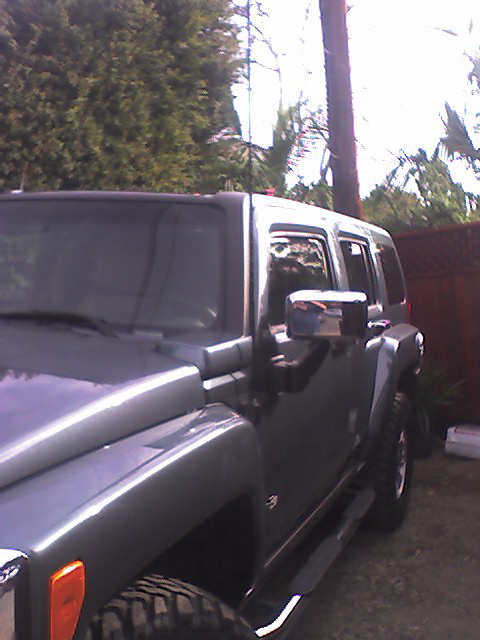

Got the antenna mounted. It now offsets the factory radio antenna by being mounted on the opposite side in the same location on the fender. Ran the antenna wire from behind glove box, out a grommet hole in the frame above the front door hinge (silicon sealed the grommet when done) up and over the top behind the cowling trim and into the other side fender. This way it was invisible and does not interfere with anything.
__________________
2006 H3 Adventure/Lux | Slate Blue | Cooper tires |Cobra CB | Firestick Antenna | Running Lights | DVD headrests | Warn 9k | ...
|
10-24-2005, 03:23 AM
|
|
Hummer Guru
|
|
Join Date: Jul 2005
Posts: 4,123
|
|

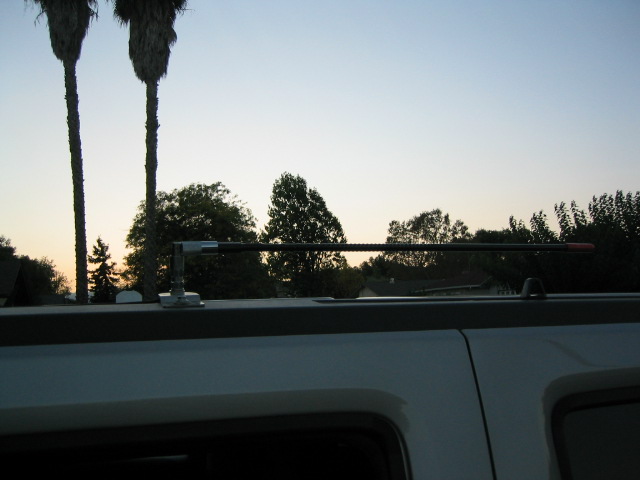

I added a fold-over mount so I can drop the antenna when I go through a low-hanging area. The reason I mounted the antenna where I did is so I can reach it out the drivers window. Thanks to the H2 guys for that idea.
__________________
|
10-27-2005, 01:26 PM
|
|
Hummer Veteran
|
|
Join Date: Jul 2005
Location: San Francisco
Posts: 192
|
|
Great job!
I have the same CB left over from my Jeepin days.
I was wondering (read procastrinating  ) about how to do it
Thanks for a gr8 idea!
-C |
10-24-2005, 03:56 PM
|
 |
Hummer Expert
|
|
Join Date: Oct 2005
Location: East, Texas
Posts: 542
|
|
Hey bud, how did you get your a pillers off? Thanks for the pictures looks great man!
__________________
Thanks and have a wonderful day!
 Klint T.
2007 Black Lux, Blinged out
|
10-27-2005, 11:35 PM
|
|
Hummer Guru
|
|
Join Date: Jul 2005
Location: nonpiker
Posts: 5,900
|
|
I am muy impressed with your expertise! Excellent install |
12-15-2005, 07:09 PM
|
|
Hummer Professional
|
|
Join Date: Aug 2005
Location: Ohio
Posts: 337
|
|
Sewie how do you like the CB radio you installed back in Oct. Is everything working good, and or have you changed anything from your origional install? Wondering because I am thinking about installing one in my H3.
__________________
What good is a Hummer if you don't use it.
|
10-24-2005, 08:33 PM
|
|
Hummer Guru
|
|
Join Date: Jul 2005
Posts: 4,123
|
|
<BLOCKQUOTE class="ip-ubbcode-quote"><div class="ip-ubbcode-quote-title">quote:</div><div class="ip-ubbcode-quote-content">Originally posted by Klint:
Hey bud, how did you get your a pillers off? Thanks for the pictures looks great man! </div></BLOCKQUOTE>
Pull the rubber door seal back and there are two screws on the side.
__________________
|
10-24-2005, 03:23 AM
|
|
Hummer Guru
|
|
Join Date: Jul 2005
Posts: 4,123
|
|

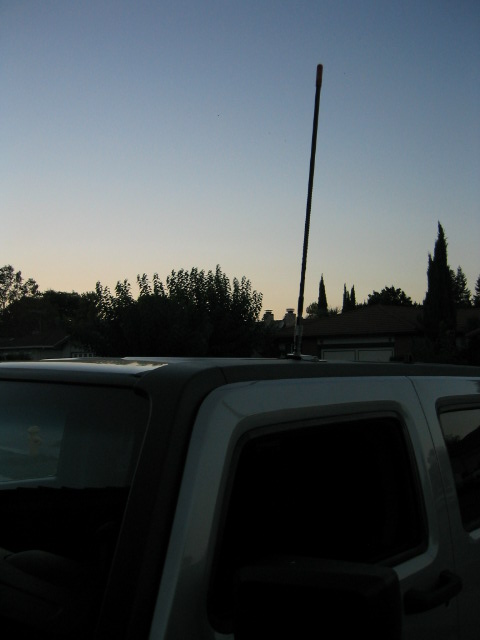

The antenna. I need to bend the mount a little. It is flush-mounted to the roof trim so the antenna leans out a little.
__________________
|
10-24-2005, 03:10 PM
|
|
Hummer Guru
|
|
Join Date: Jul 2005
Posts: 4,123
|
|
<BLOCKQUOTE class="ip-ubbcode-quote"><div class="ip-ubbcode-quote-title">quote:</div><div class="ip-ubbcode-quote-content">Originally posted by The Green Lantern:
looks great, I will do the same where you put the unit inside the center console, but how did you remove the face cover of the center console? and if you could give us more detail on how did you tap the power?...thanks. </div></BLOCKQUOTE>
The face plate is held in with clips. Move the shifter all the way back, stick your fingers in the aux outlets and pull up/out. There are about 4-5 plugs you have to remove to get it all the way out.
For the power, the wires should all be labeled. They were bundled just above the light you see in the picture.
One note about that mounting location. Make sure you tune your antenna before you mount the box since it is pretty hard to get to afterwards.
__________________
|
12-15-2005, 08:10 PM
|
 |
Hummer Professional
|
|
Join Date: Dec 2005
Location: virginia
Posts: 263
|
|
thanks for the pictures and info .. I'm getting ready to install a yaesu 897 in my H3
__________________
_. __________
H /__________\
3[O][][][][][][O]
|
12-15-2005, 08:12 PM
|
|
Hummer Guru
|
|
Join Date: Jul 2005
Posts: 4,123
|
|
<BLOCKQUOTE class="ip-ubbcode-quote"><div class="ip-ubbcode-quote-title">quote:</div><div class="ip-ubbcode-quote-content">Originally posted by 2xtreme:
Sewie how do you like the CB radio you installed back in Oct. Is everything working good, and or have you changed anything from your origional install? Wondering because I am thinking about installing one in my H3. </div></BLOCKQUOTE>
Everything's working ok but I am thinking about moving the antenna to the rear bumper and adding a spring mount. Most of the areas I've been I can't leave the antenna up so transmitting sucks.
__________________
|
10-24-2005, 09:11 PM
|
 |
Hummer Guru
|
|
Join Date: Oct 2005
Location: I CAN BARELY SEE THE ROAD...
Posts: 4,624
|
|
Sweet looking install Sewie!
__________________
 Black Sheep Hummer Squadron( CenCal Chapter - Me, Myself, and I )
"OBAMA......Making Jimmy Carter LOOK GOOD!"
|
12-29-2005, 06:04 AM
|
 |
Hummer Expert
|
|
Join Date: Dec 2005
Location: CA
Posts: 585
|
|
CB install looks nice!
question... with the motorola talkabouts whats the need for CB's?
regards,
__________________
Need a Vinyl? Have a club and need stickers... PM me.
|
10-24-2005, 03:19 AM
|
|
Hummer Guru
|
|
Join Date: Jul 2005
Posts: 4,123
|
|
I used the Firestik Ram pickup mount kit and mounted it to the roof trim using the existing screw hole above the driver's window.
__________________
|
10-24-2005, 03:20 AM
|
|
Hummer Guru
|
|
Join Date: Jul 2005
Posts: 4,123
|
|

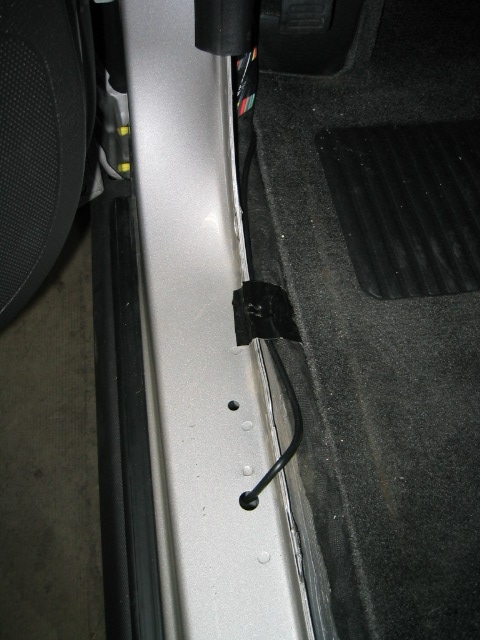

I ran the coax under the drivers side and up into the door sill. There are some existing grommets underneath.
__________________
|
12-16-2005, 01:35 PM
|
 |
Hummer Guru
|
|
Join Date: Sep 2005
Location: fort salonga ny
Posts: 3,789
|
|
Just to let you know the cig/accy lighter/ socket shuts off after 20 min(of shutting off truck) if accy is left on.
__________________
H3 gray adventure,brushguard,hood handles,sunroof,steps,crossbows,smokers package,window/sunroof visor,Airbrushed spare tire cover,mudflaps,K&N filter,SS Hummer insert,Hummer rubber mats,cargo rubber mat + shade,12 volt airhorn,eclipse nav/dvd/rear camera/mini remote,autostart,12 volt fridge,high beam garage remote,underhood air compressor, taillight bezels ,clinometer ,trailer brake and hitch.
|
11-11-2005, 02:25 AM
|
|
|
|
Join Date: Aug 2005
Location: Valley Of the Sun, Arizona
Posts: 218
|
|
I like the Radio/antenna set up I had the same one in my Xterra. Saved the radio but the antenna went.
__________________
May the next exit offroad be anywhere you want it to be.
|
