10-23-2003, 06:02 AM
|
|
|
|
Join Date: Jul 2003
Posts: 86
|
|
I know this may have been covered already. But I noticed that the front passenger side tire rubs on the sway bar when making a left U-turn. Marks on both the tire and swaybar. Is there a solution for this.
thanks,
troy
|
10-23-2003, 01:35 PM
|
|
|
Normal as it happens to most H2's. I have a 03 Denali that also rubs, this is also normal for this truck but it still should not happen. The problem is with the design it’s inherent in this vehicle. GM most likely knows it but why waist money to fix a problem when only .001% of owners are complaining. It bugs me too but I don't see it getting fixed real soon. BIG-C
White 03-H2-LUX
<a target="_blank" href="http://www.gstyle4u.com">
 </a> |
10-30-2003, 03:33 PM
|
|
|
Hey Dan
I like your tires - I am not an expert on tires/rims - a few quick questions:
Do they fit on stock rims?
Do you have to change any thing (speed setting-H2 clearance)?
What are Spacers and how do theyapply to your setup?
Thanks
"It's what you learn, after you know it all, that counts - John Wooden |
10-30-2003, 02:45 PM
|
|
|
|
Join Date: Aug 2003
Posts: 111
|
|
4 1/4 inch backspacing is the magic number for the aftermarket wheels. Running 37x13.5 M/T Baja Claws and they never rub. Never.
Dan from Alabama
|
10-24-2003, 06:06 PM
|
|
|
|
Join Date: Mar 2003
Location: SALINAS, CA, USA
Posts: 49
|
|
Another picture of approach
|
10-24-2003, 05:29 PM
|
|
|
|
Join Date: Mar 2003
Location: SALINAS, CA, USA
Posts: 49
|
|

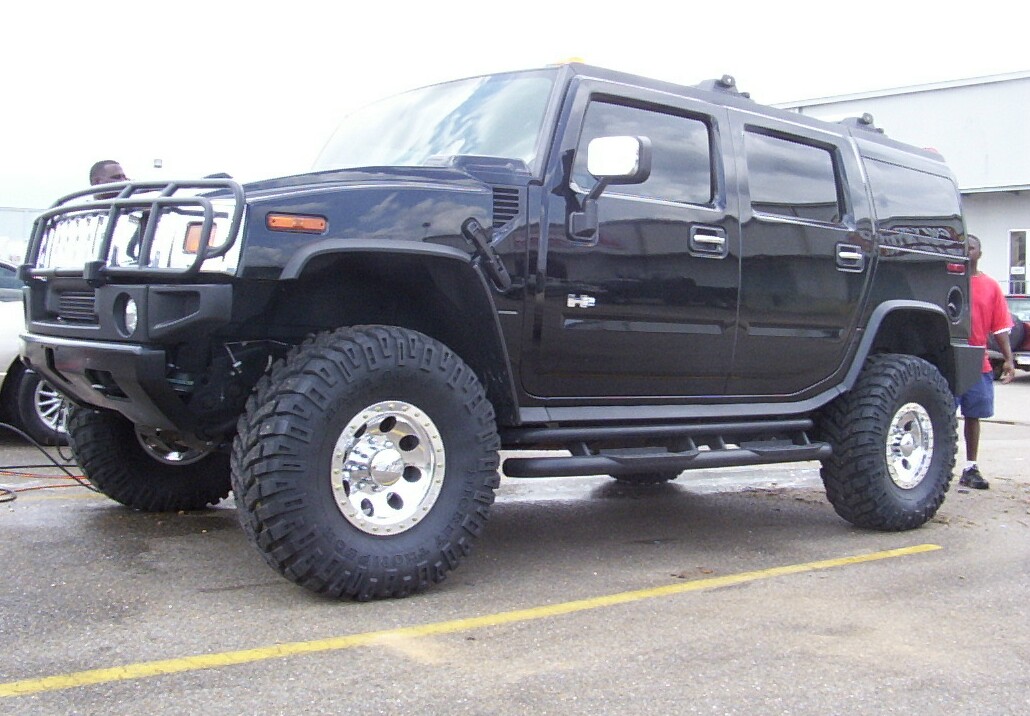

PICTURE OF MY H2 WITH PROCOMP WHEELS AND 37IN MTR.
|
10-23-2003, 11:33 AM
|
|
|
|
Join Date: Nov 2002
Location: Aruba
Posts: 349
|
|
Had same problem.
Add this to annoying-H2-things-thread...
Mechanic adjusted sway bar bolts/brackets.
|
10-30-2003, 06:19 PM
|
|
|
|
Join Date: Aug 2003
Posts: 111
|
|
TB
they are 16 inch tires and wheels.
Yes you have to reprogram the computer and 2-3 inches of lift makes it look alot better.
I don't have spacers. My wheels have 4 1/4 inches backspacing. That means that across the inside of the rim to the wheel mounting flange the distance is 4 1/4 inches. If it is 5 inches it will hit the sway bars.
Dan from Alabama
|
10-23-2003, 01:40 PM
|
|
|
Removing and replacing the sway bars will not change the alignment. I performed them a couple years ago as a fleet mechanic. BIG-C
White 03-H2-LUX
<a target="_blank" href="http://www.gstyle4u.com">
</a> |
10-23-2003, 06:02 AM
|
|
|
|
Join Date: Jul 2003
Posts: 86
|
|
I know this may have been covered already. But I noticed that the front passenger side tire rubs on the sway bar when making a left U-turn. Marks on both the tire and swaybar. Is there a solution for this.
thanks,
troy
|
10-23-2003, 05:40 PM
|
|
|
|
Join Date: Mar 2003
Location: SALINAS, CA, USA
Posts: 49
|
|
WITH STOCK WHEELS THE FRONT TIRES WILL RUB WHEN TURNING. I TOOK CARE OF THIS PROBLEM BY GETTING RID OF STOCK WHEELS AND PUTTING ON NEW WHEELS WITH DIFFERENT OFFSET, NOW EVEN WITH 37IN TIRES I HAVE LOTS OF ROOM WHEN TURNING WITH NO CHANCE OF RUBBING.
|
10-23-2003, 01:05 PM
|
|
|
Normal.  Dont know why but it is. BIG-C
White 03-H2-LUX
<a target="_blank" href="http://www.gstyle4u.com">
</a> |
10-24-2003, 03:21 PM
|
|
|
Hi ANGELO D
Do you have any pictures of your rim and tire setup to share
"It's what you learn, after you know it all, that counts - John Wooden |
10-24-2003, 02:40 PM
|
|
|
|
Join Date: Mar 2003
Location: SALINAS, CA, USA
Posts: 49
|
|
PhilD, The wheels I went with are pro comp
exterrain, 17in/10in, I had these wheels powder coated black. You would have plenty of room with
13.50in tires because my 12.5in tires have over 4inches of clearance when tires are turned in all the way. good luck.
|
10-24-2003, 05:34 PM
|
|
|
|
Join Date: Mar 2003
Location: SALINAS, CA, USA
Posts: 49
|
|
ONE MORE TRY AT PICTURES, I TOOK ON HQ AND SEEMS TO BIG. LETS SEE
|
10-24-2003, 04:15 PM
|
|
|
|
Join Date: Apr 2003
Posts: 318
|
|
Not sure why but my 37" MTR's do not rub at all.
|
